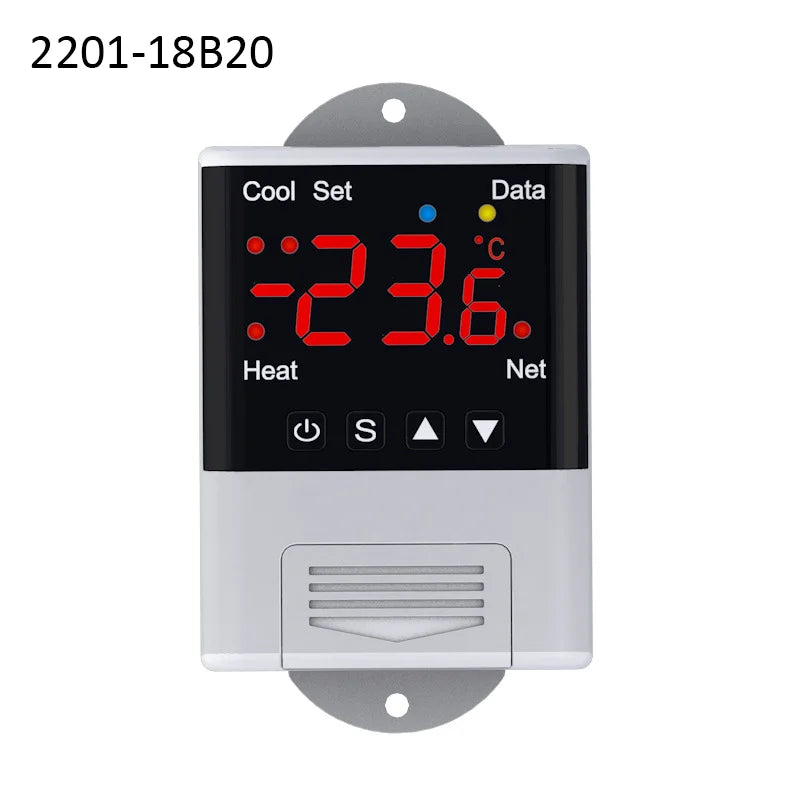

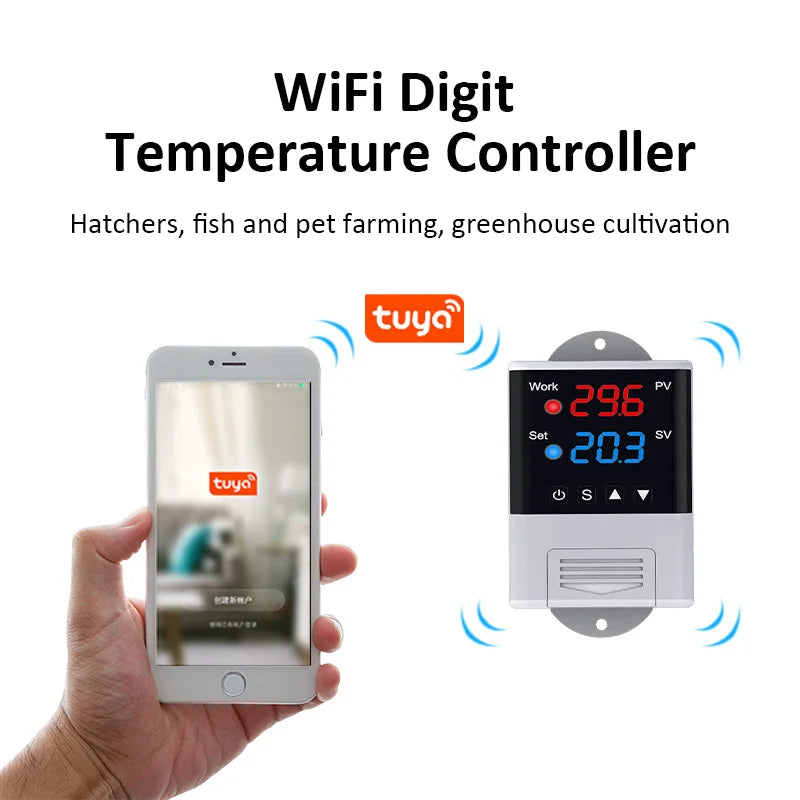

Smart Thermostat AC110~230V WiFi Digit Temperature Controller -40-99℃ Heating Cooling Thermostat forReptile/Incubator/Greenhouse

Setting Parameters

When the thermostat is working normally, press and hold the 'S' key for more than 3 seconds to enter the parameter modification mode, the 'Set' indicator is on, the digital tube displays the code of the first menu item'F1', press the'∧' or'∨' key The code of the menu item can be adjusted up or down, press the 'S' key to display the parameter settings of the current menu, hold down the 'S' key, and then short press the'∧' or'∨' key to increase or decrease and display the current menu Parameter setting value; press and hold the 'S' key, and long press the'∧' or'∨' key to quickly increase or decrease and display the parameter setting value of the current menu

Simultaneously press and hold the'∧' and'∨' keys, then power on, and the parameters will be restored to the factory settings

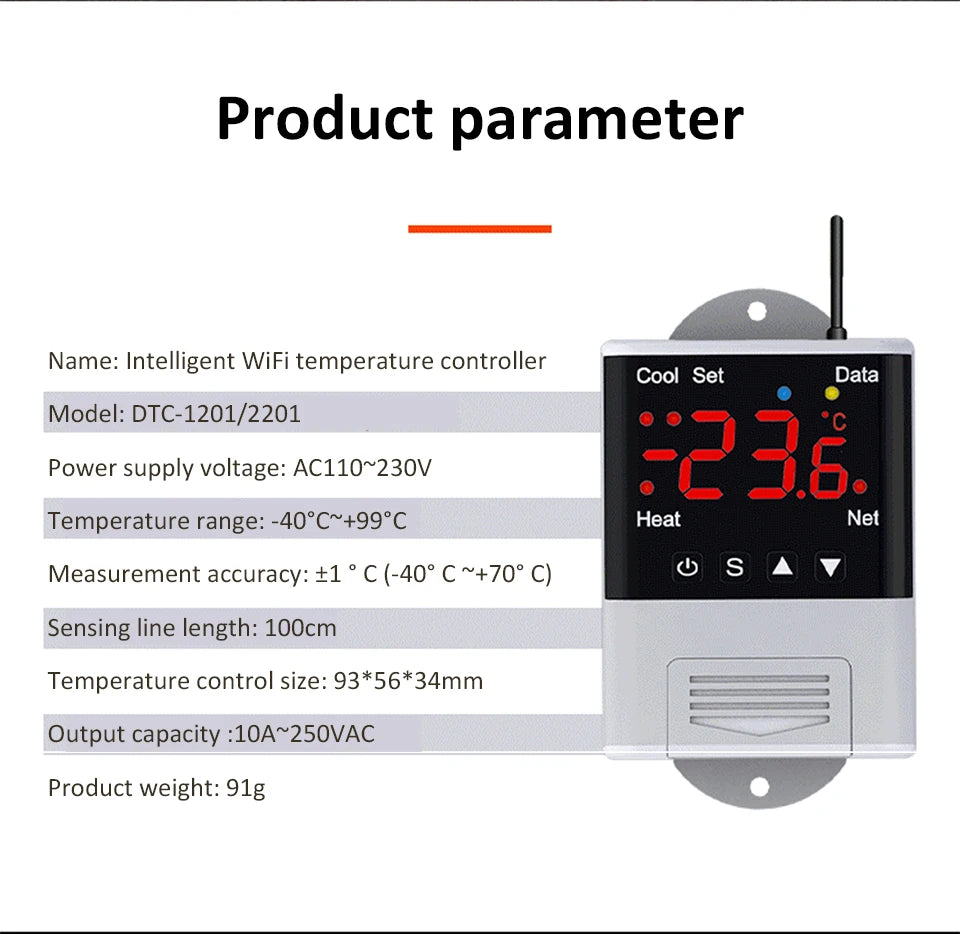

Specification

Product name: Thermostat

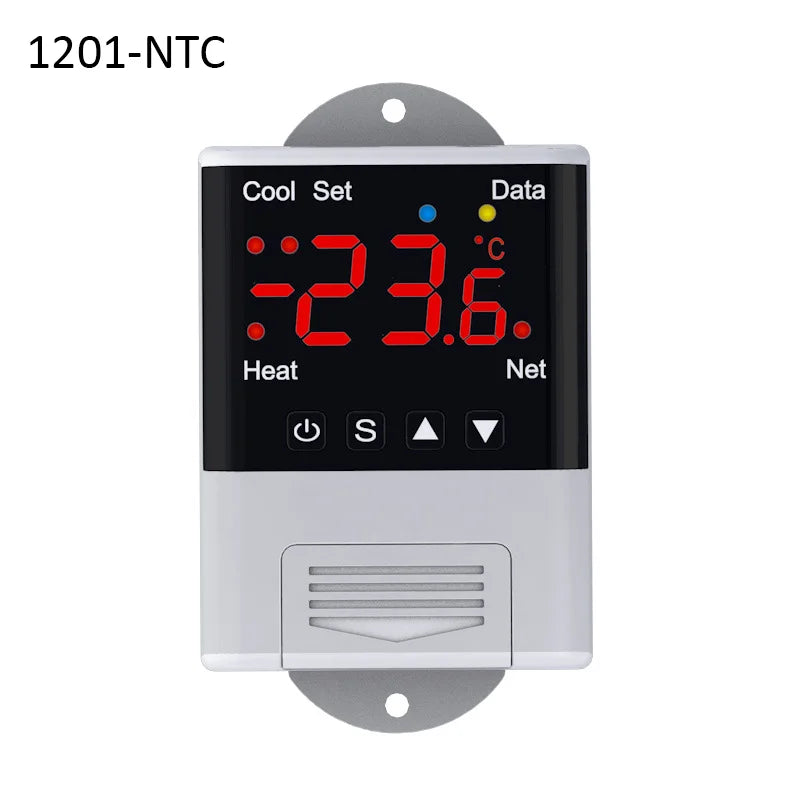

Product model: DTC2201/DTC1201
Power supply voltage: AC 110 -230V
Temperature range: -40℃ -99℃
Temperature measurement accuracy: ±1℃ (-40℃ -70℃)
Sensor cable length: 100cm

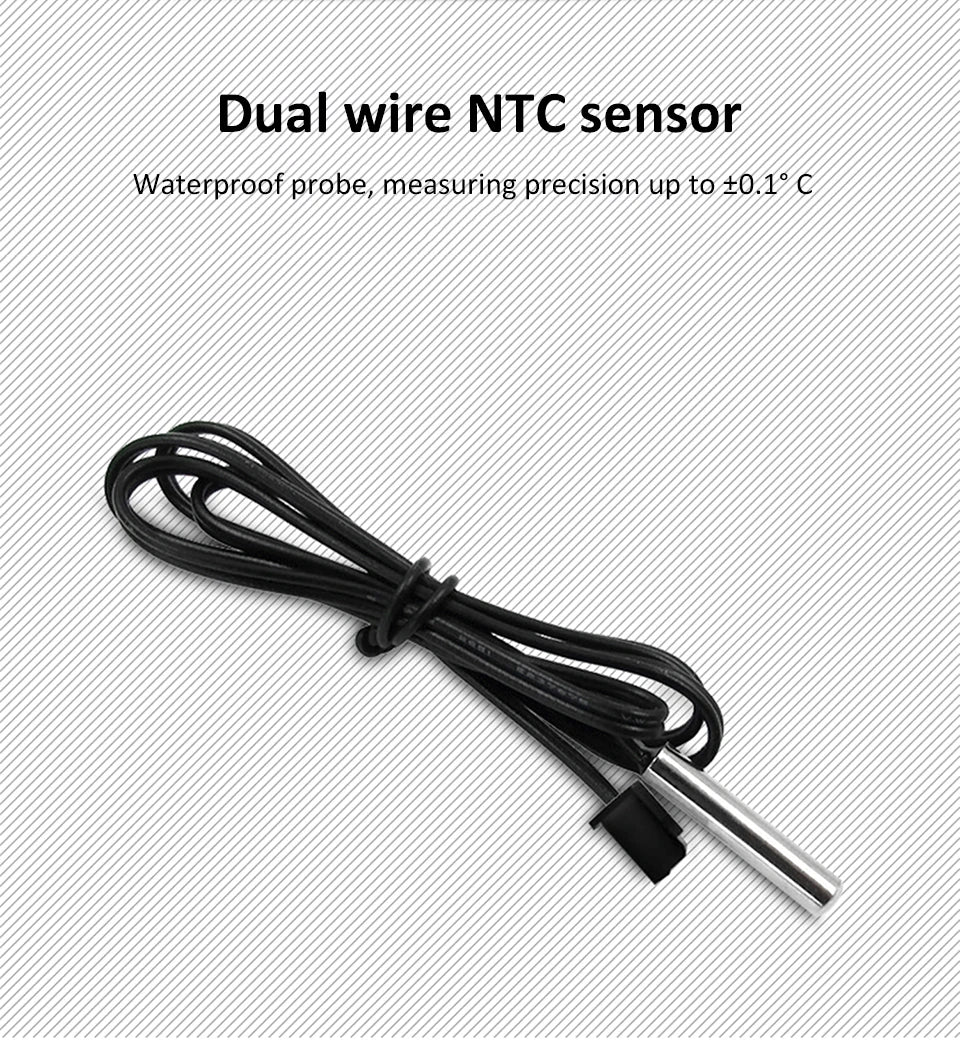

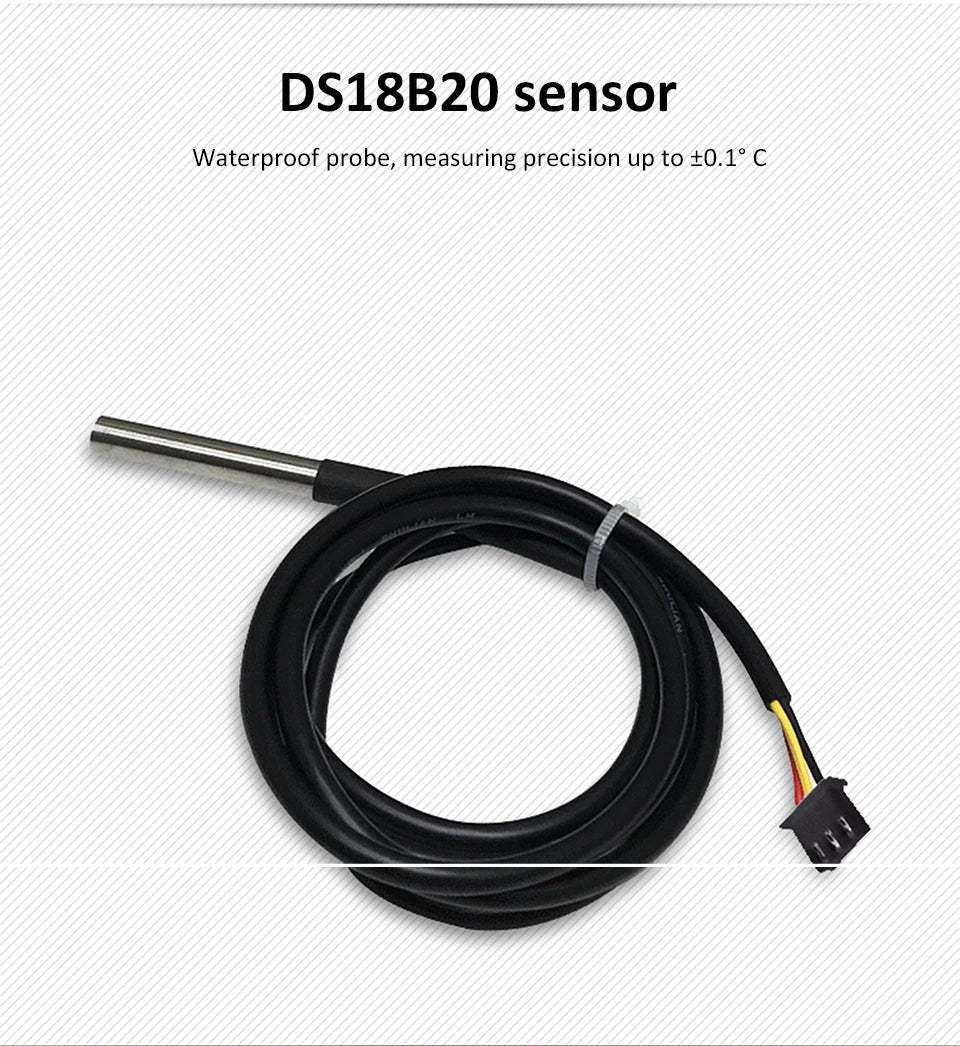

Sensor cable type: DS18B20(DTC2201)/NTC(DTC1201)
Size: 93mm*56mm*85mm
Output capacity: cooling (10A/250VAC) heating (10A/250VAC)

Note

1.The power supply voltage should be consistent with the voltage marked by the thermostat, and ensure the stability of the power supply voltage
2.In order to avoid possible interference, it is recommended that the sensor lead and the power line maintain an appropriate distance

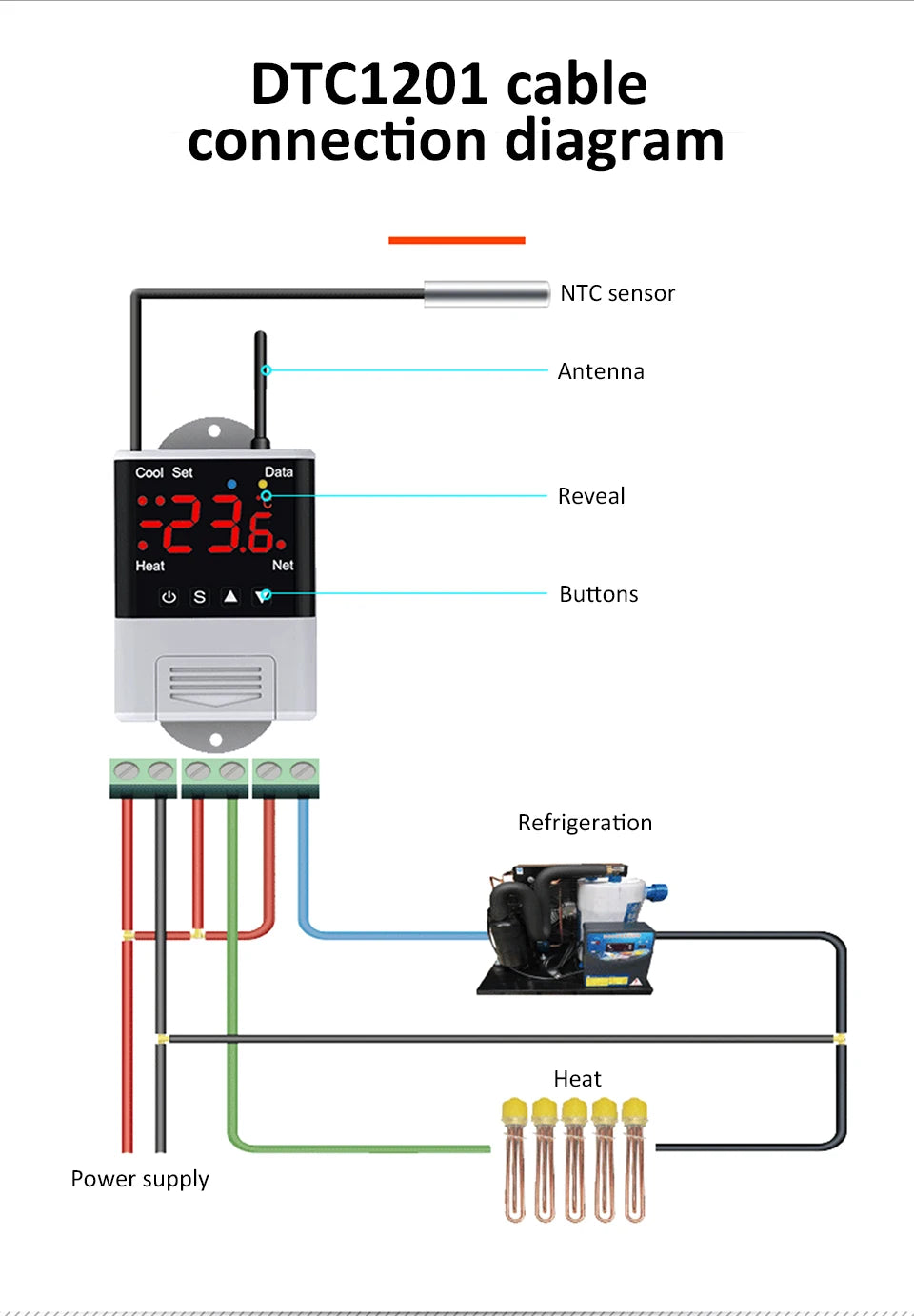

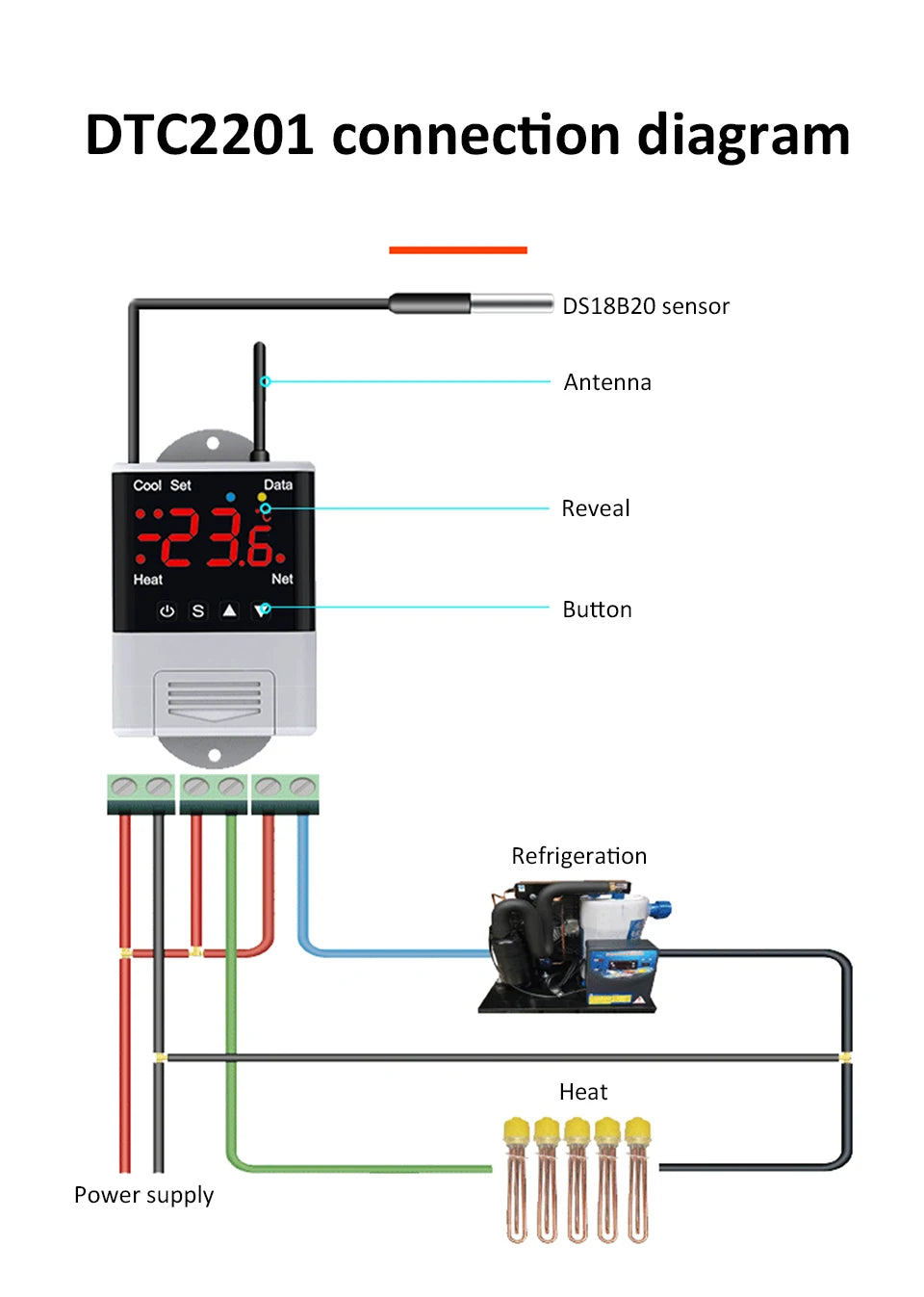

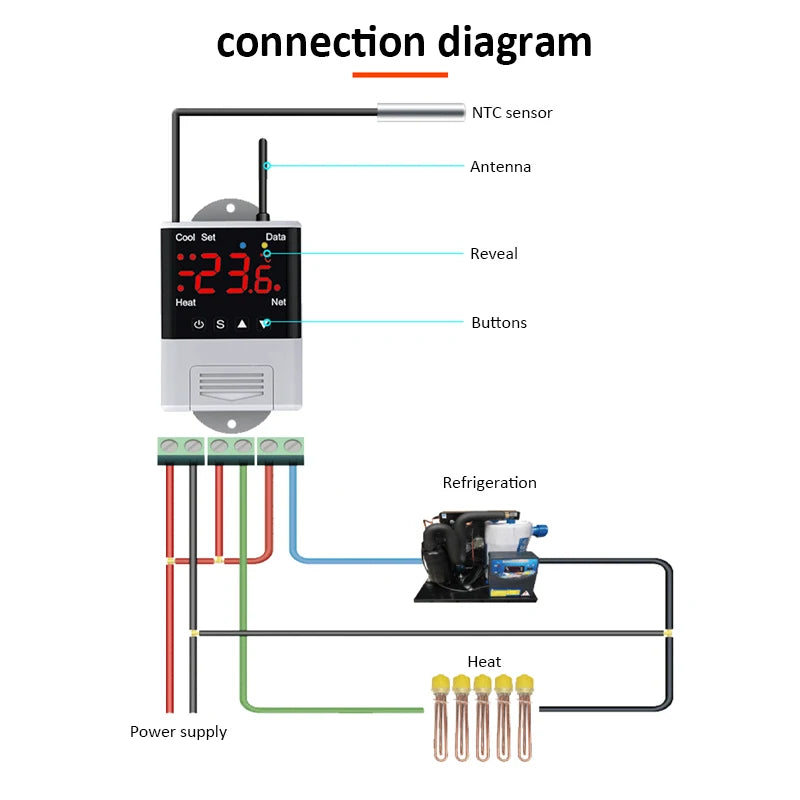

3.Strictly distinguish the sensor lead, power cord and output relay interface, can not be connected wrong, the relay should not be overloaded
All wiring changes must be made with the power disconnected

Packing list

1 * Digital Temperature Controller
1 * Temperature Sensor Cable
